Product Details:
|
| Product Name: | BIT-MV-4K60-801 | Brand: | Bitvisus |
|---|---|---|---|
| Feature: | 4K60 Multi-viewer HDMI Switch | Input Interface: | IN 1~4:4XHDMI 2.0,2XDP 1.2IN 5~8:4XHDMI 1.3 |
| Input Maximum Pixel Clock Frequency: | 600MHz | Interface Protocol: | HDCP 2.2,HDCP 1.2 |
| Output Resolution: | 3840X2160P60,3840X2160P30,1920X1080P60 | Color Format: | RGB444,YUV444 |
| Highlight: | Infrared Remote Control Video Switch,4K60 HDMI Multi Viewer,8 pictures HDMI Multi Viewer |
||
Bitvisus 4K60 8 pictures multi-viewer HDMI/DP remote control video switch infrared remote control
Product Features

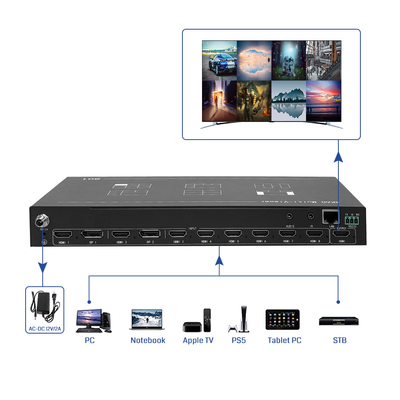

☞ This device features 8 input channels. Specifically, the first 4 channels are capable of handling 4K60 signals, and among them, 2 channels also support HDMI/DP connectivity. The remaining 4 channels can support 1080P60 resolution.
☞ In terms of output, there is 1 channel that offers 4K60 output via the HDMI interface. It supports three output resolutions: 4K60, 4K30, and 1080P60.
☞ It provides multiple control options, including remote control, physical buttons, RS232 connection, and web-based control, allowing for convenient operation.
☞ Audio output is supported as well, with a 3.5mm audio jack for separate audio output, meeting various audio requirements.
☞ The device allows for custom modification of the IP address and supports DHCP, facilitating network configuration.
☞ Seamless switching of input signals is enabled, along with seamless switching among 9 splitting modes, ensuring smooth visual transitions.
☞ It comes with 2 types of hanging ears, providing flexible installation options. You can choose to wall-mount it for a space-saving solution or fix it inside a cabinet according to your specific needs.
Bitvisus 4K60 8 pictures multi-viewer HDMI/DP remote control video switch infrared remote control
| Product name | 4K30 8 input 8 output seamless switching HDMI Multiviewer Switch |
| Product features | Supports any split screen mode within 8 images |
| Input | 8 HDMI |
| Output | 1 HDMI and DVI |
| Max input resolution | 1920x1080@60Hz |
| Max output resolution | 3840x2160@30Hz |
| Split model | Single-screen,four-screen,four-screen 1 big and 3 small,eight-screen 2 big and 6 small,eight-screen grid,etc. |
| Sound frequency | Supports 8 HDMI audio inputs,1 HDMI audio output (8select1) |
| Control mode | Pushbutton, Infrared Remote Control |
| Power supply | 12V@2A AC-DC Power Supply |
| Power wastage | 12W |
| Size | 29.5cm*16cm*14cm |
| Weight | 0.65KG |
| Certification | CE,FCC,HDMI |
| Warranty | 12months-1year |
Bitvisus 4K60 8 pictures multi-viewer HDMI/DP remote control video switch infrared remote control

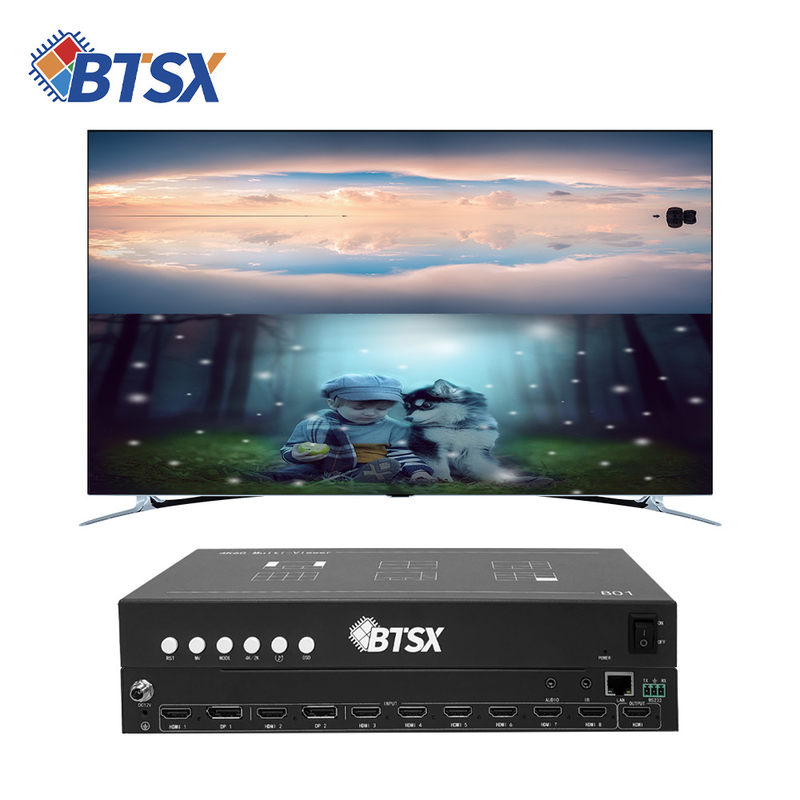

The BIT-MV-4K60-801 is an advanced 4K60 eight-screen splitter developed by Shenzhen Bitvisus Technology Co.,Ltd. It enables the
display of eight screens on a single display device. Besides the standard eight-screen split display, it offers various display
modes such as single-screen, four-screen, six-screen, and seven-screen. Each screen allows seamless switching of the input source
without black screen flickering during mode transitions.
